Description

FTL4E1QM1C Technical Specifications

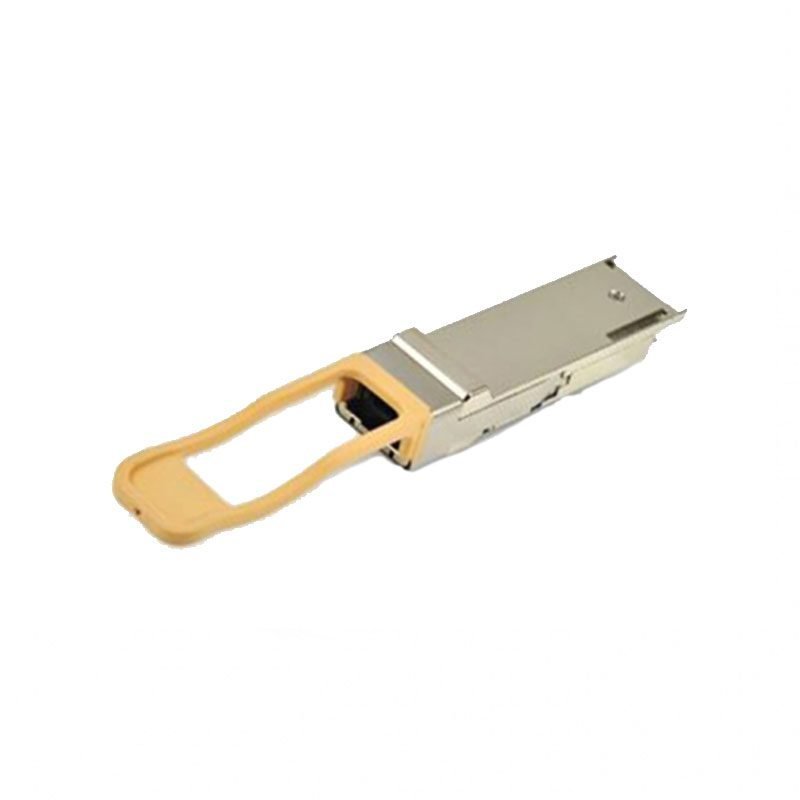

Transceiver Module

Hot-pluggable QSFP Plus form factor
Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates 40 Gigabit Ethernet
Power dissipation < 3.5W
18.5 dB link insertion loss budget
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 40km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC Connector
Built-in digital diagnostic functions, including Tx/Rx power monitoring
